Description : capacitor-10KV-4700PF-472M-10000V Ceramic DISC Capacitors

Stock : 5000PCS

MOQ : 1pcs

Price : Email us for details

Payment Terms : T/T, Western Union

Shipping Method : LCL, AIR, FCL, Express

Date Code : Newest code

Shipping by : DHL/UPS/Fedex

Condition : New*Original

Warranty : 365days

Lead free : Rohs Compliant

Lead times : Immediately Shipment

Package : Standard

Mounting Style : SMD/SMT

Contact Now

capacitor-10KV-4700PF-472M-10000V Ceramic DISC Capacitors

product name	Chip capacitor	specification	10KV-D14.5-F10-472M

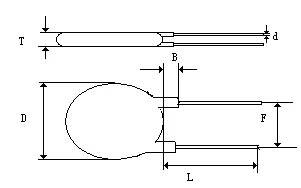

Profile drawings and dimensions		external diameter D	14.5mm Max
		thickness T	6.5mm Max
		length of lead L	30mm ±1.0mm
		Lead foot distance F	10±0.3mm
		Lead line diameter d	0.7mm ±0.02mm
		Coating foot length B	3.5mm Max

Material characteristics

Electrical performance parameters

Y 5 V

1. rated voltage :DC10KV

2.nominal capacity :4700pF

3.Capacity allows deviation: M±20%

test condition(a) measuring voltage :15KV DC (b) frequency: 1KHz

(c)temperature : 25℃± 2 ℃ (d) humidity: <70%

4.loss tangent :tg≤ 1.0%

5. insulation resistance (IR)≥ 10000MΩmin

6. high-voltage insulation test:DC1.5 x no breakdown or flying arc

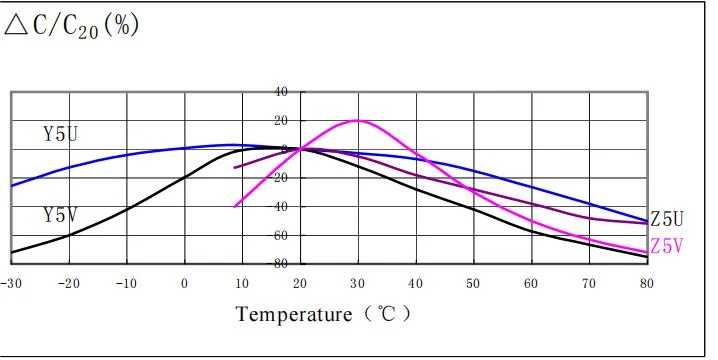

7.Temperature change rate:22%-82%

8. end-use temperature-25℃~85℃

capacitor-10KV-4700PF-472M-10000V Ceramic DISC Capacitors
